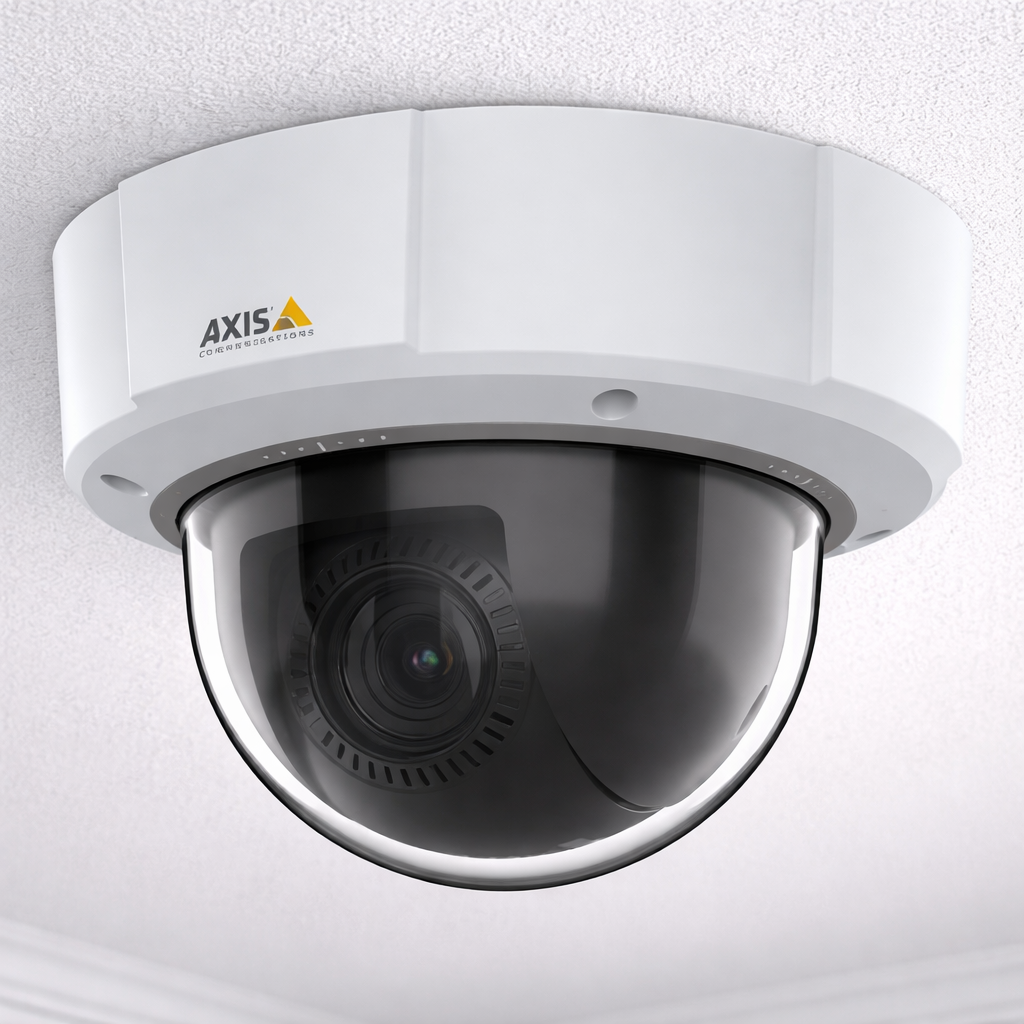

Axis Communications M5526-E 4MP PTZ Network Camera – Indoor & Outdoor Surveillance
CA$1899.00
4-megapixel resolution with 10× optical zoom for detailed monitoring
Compact form factor designed for discreet installations
Full 360° continuous pan for comprehensive area coverage
Product Overview
The AXIS M5526-E PTZ Camera is a compact yet powerful surveillance camera designed to deliver clear 4 MP video quality with a 10x optical zoom for detailed monitoring across wide areas. Its continuous 360° pan capability allows seamless coverage, while autofocus technology ensures consistently sharp images during movement and zoom.
Designed for flexible deployment, this camera supports both indoor and outdoor installations and is compatible with a wide range of AXIS PTZ mounting accessories. Built on the ARTPEC-8 platform, it features an integrated deep learning processing unit (DLPU) that enhances analytics performance, improves processing efficiency, and supports advanced edge-based analysis.
With built-in analytics, the camera can intelligently detect and categorize people and vehicles, helping improve situational awareness and operational response. Integrated device protection technology helps secure the camera and safeguard sensitive data against unauthorized access.
Key Features
4 MP resolution with 10x optical zoom
Compact dome design for discreet installations
Continuous 360° pan for full-area coverage
Power options via PoE or 24 V, with audio and I/O support
Advanced analytics powered by deep learning
Designed for reliable indoor and outdoor use
General Information
Product Name: AXIS M5526-E PTZ Network Camera
Brand: AXIS Communications
Series: M55
Product Type: PTZ Security Camera
UPC: 7331021083394
Technical Specifications
Video & Imaging
Resolution: 4 MP (2688 × 1512)
Maximum Frame Rate: 60 fps
Video Compression: H.264, H.265, MJPEG, MPEG-4
Image Sensor: CMOS (1/3")
Wide Dynamic Range: Yes
Minimum Illumination: 0.01 lux
Night Vision: Infrared (IR)
Lens
Lens Type: Varifocal
Focal Length: 4.7–47 mm
Aperture: f/1.6–3.0
Network & Connectivity
Supported Protocols: IPv6 (USGv6), NIST SP800-267
Power over Ethernet (PoE): Yes
Ethernet: Supported
Memory Card Support: Yes
Environmental & Durability
Ingress Protection: IP66
Impact Rating: IK09
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Environmental Compliance: RoHS, REACH
Environmentally Friendly: Yes
Physical Characteristics
Color: White
Form Factor: Dome
Diameter: 6.5 in
Height: 5.91 in
Weight: 2.20 lb
Mount Type: Recessed mount
Power Requirements
Input Voltage: 20–28 V DC
Maximum Power Consumption: 12 W
PoE Support: Yes
Certifications & Standards
ONVIF Profiles: G, M, S, T
Compliance: FCC Class A, CISPR 32/35, EN standards, ICES-3(A), VCCI Class A
Package Contents
AXIS M5526-E PTZ Camera
Installation Guide
Bayonet Adapter
Terminal Block
Warranty
Limited Warranty: 5 Years
