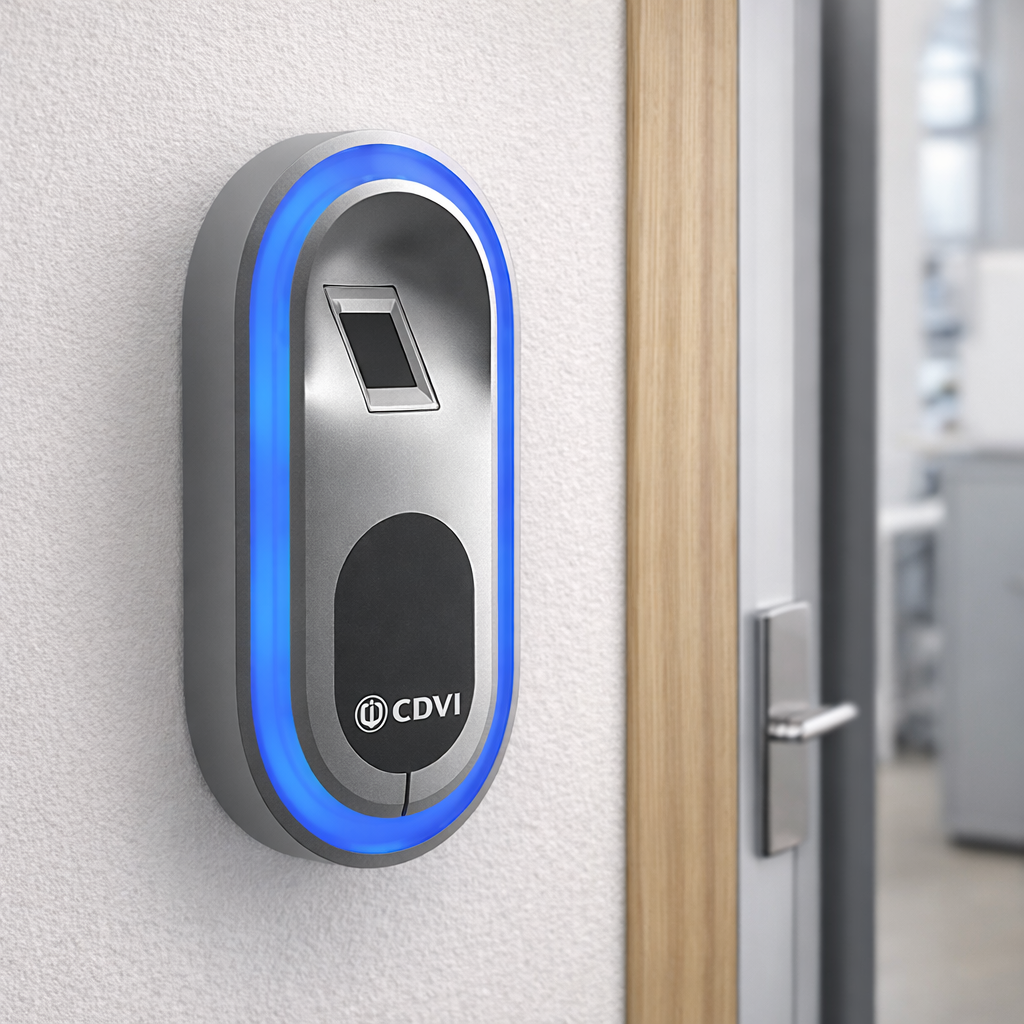

CDVI Biometric Fingerprint Access Reader – BIOSYS Series
CA$797.81
Supports storage of up to 500 registered fingerprints
Offers 26-, 30-, or 44-bit Wiegand output for system compatibility
Provides two authentication options: fingerprint-only access or combined fingerprint and card verification
Product Overview
The CDVI BIOSYS Fingerprint Reader is a modern access control device designed to enhance security through biometric identification. Built for ease of use, this reader allows system setup and user enrollment using configuration and user cards, eliminating the need for a computer or specialized software.
User fingerprints are securely linked to individual ID cards, creating a reliable and efficient authentication process. This solution offers a cost-effective way to strengthen access control systems while maintaining high security standards for residential, commercial, or light industrial environments.
Biometric technology uses unique physical traits—such as fingerprints—to confirm identity with a high level of accuracy. By relying on biometrics, the risk of unauthorized access, identity sharing, or mistaken identification is significantly reduced.
Key Features
Supports storage of up to 500 fingerprint records
Wiegand output options: 26-bit, 30-bit, or 44-bit
Dual authentication modes: Fingerprint only or Fingerprint with card
Includes 1 master card and 10 MIFARE® user cards
Remote controller with RS485 communication
Integrated 10/100 Ethernet port
Two relay outputs for door lock and alarm control
Inputs for request-to-exit (REX) and door contact
Operates on 12V DC power
General Information
Product Name: CDVI BIOSYS Fingerprint Reader
Product Category: Access Control / Biometric Readers
UPC: 3662211015166
Technical Specifications
Identification
Authentication Methods: Fingerprint and Card
Physical Characteristics
Color: Gray
Width: 3.2 in
Length: 6.4 in
Depth: 1 in
Weight: 1.10 lb
Mounting Type: Surface mount
Product Details
Manufacturer: CDVI
Model: BIOSYS1
Product Type: Fingerprint Reader
